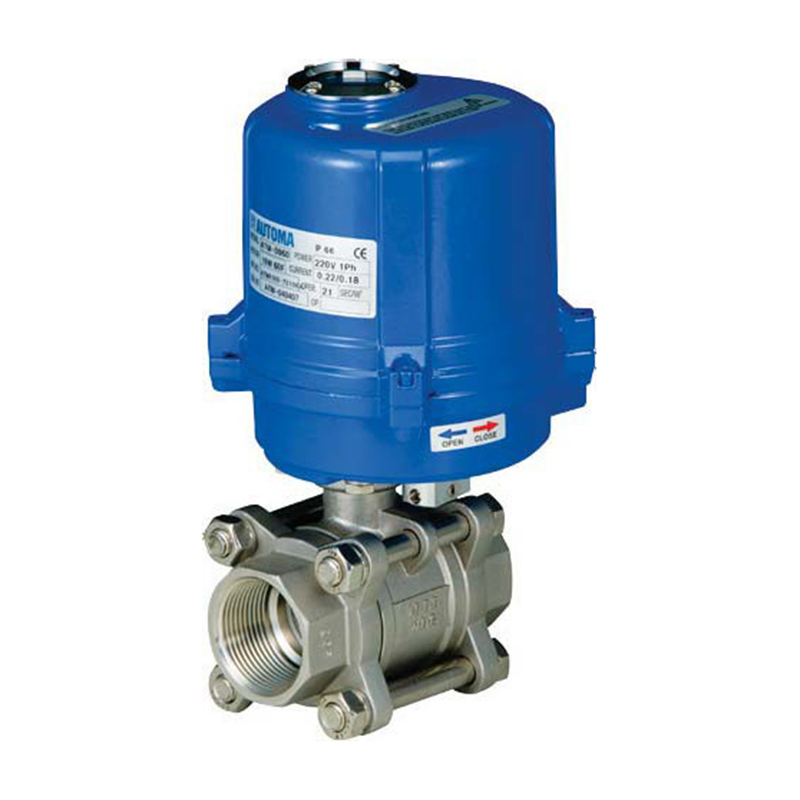

Screw 3 Piece Ball Valve
Application Standards
- Fluids : water, Steam, Gas, Oil, Chemical Process
- Construction : 3 Piece body, Floating Ball, Anti Blow Out
- End Connection : PT Screw
- Design : ANSI B 1.201 / 16.10 /16.34, API 598
- Seat Leakage : Class IV, V, VI
SPECIFICATION
| Valve Size | 8A(1/4″) ~ 50A(2″) |
| Actuator Model | ATM0020 / 40 / 80 |
| Actuator Type | Electric |
| Electrical | AC110V, 220V, 380V |
| Output Torque | 20Nm / 40Nm / 80Nm |
| Operating time | 11/50Hz, 60Hz, 14/50Hz, 12/60Hz, 16/50Hz, 14/60Hz |
| Operating Type | On-Off |
| Rotating Angle | 90˚ ±10˚ |
| Fluid Temp | -10℃ ~ 70℃ |
| Rating | 1000PSI |
| Material | Body(A351 CF8, 8M) / Ball(A182 F304, 316) / Seat(PTFE, RTFE, PEEK) |
