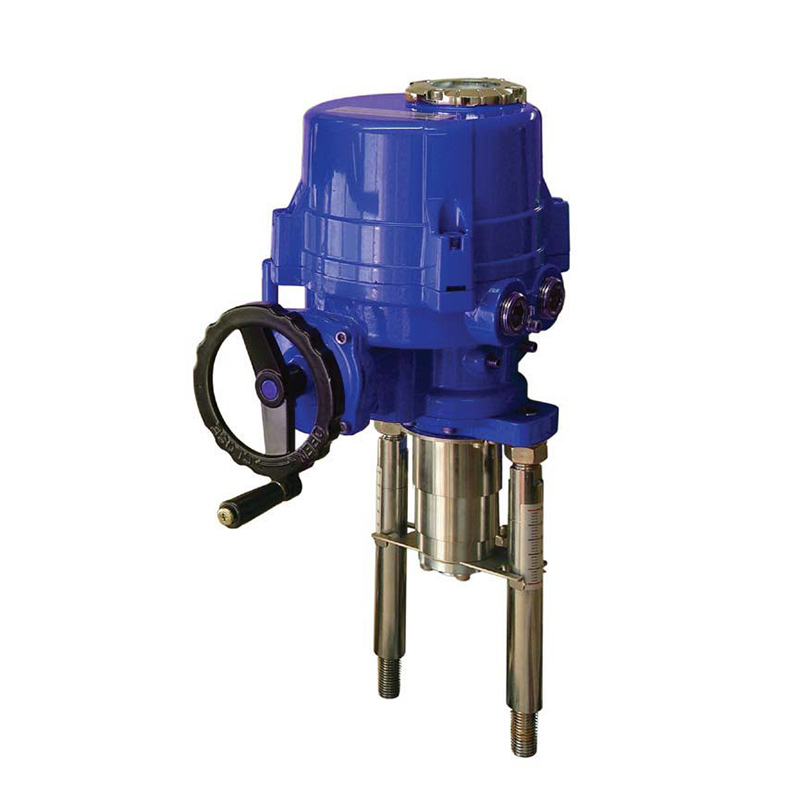

Linear Type Actvator (AQL Series)

Product category

SPECIFICATION

Technical information

Model

Max.

Speed

Rated Current(A)

Valve

PCD on

Pillar

Weight

Force

Stroke

50/60Hz

Stem

Flange

Threads

50/60Hz

Threads

mm/sec

1 Phase

3 Phase

110V

220V

380V

440V

24V

AQL04

0.7/0.9

0.45/0.44

0.26/0.25

0.30/0.31

0.28/0.40

Max. M20

100

M16

AQL06

0.7/0.9

0.49/0.48

0.29/0.28

0.32/0.33

0.30/0.42

3.5

Max. M20

100

M16

AQL08

0.9/1.1

0.92/0.88

0.48/0.46

0.18/0.17

0.17/0.16

2.9

Max. M20

100

M16

AQL10

0.9/1.1

0.95/0.91

0.50/0.48

0.19/0.18

0.18/0.17

3.2

Max. M20

100

M16

AQL12

0.9/1.1

0.98/0.94

0.52/0.50

0.20/0.19

0.19/0.18

3.5

Max. M20

100

M16

AQL20

100

0.9/1.1

1.75/1.68

0.93/0.89

0.30/0.30

0.32/0.31

Max. M24

165

M20

AQL25

100

0.9/1.1

1.80/1.72

0.95/0.92

0.32/0.32

0.34/0.33

Max. M24

165

M20

Standard Specification

Manual Override

Handwheel with switchable declutchable lever

Enclosure (EN60529)

IP67

Cable Entry

2 x PF 3/4″ TAP

Position Indication

Scale on pillar pointed by indicator

Housing

Aluminum alloy hard anodized for anti-corrosion

Painting

Epoxy power coated

Ambient Temperature

-20℃ ~ +70℃

Operating Mode (EC34-1, 8)

S2-Max. 30 Min / S4-50% ED, 800 c/h / S4-50% ED, 1200 c/h

Motor Protection

Thermal Switch, Class F Insulation

Space Heater

5W (110/220VAC) for anti condensation

Limit Switch

1 each for open/close (SPDT 10A 250VAC rating)

Mounting Direction

Any direction except for heading downward

Pillar Material

Stainless steel, carbon steel with special surface treatment
